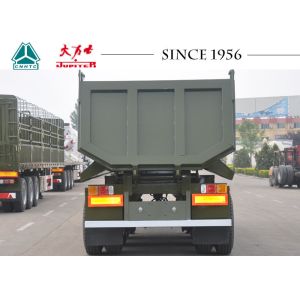

Durable 27CBM 3 Axles U Shape Tipper Trailer with Heavy Duty Design
I. Application
Use for carry sand,stone,coal,mine etc.
II. Feature
1. Heavy duty and extra durability design,opting for high tensible
low carbon alloy Q345B
steel.I beam welded by automotive arc-submerge process.
2. The tipper trailers equiping famous brand part in
alxes,suspension,landing gear.Have higher property.More reliable
and ensure the long life span of trailers.
3. The tipper trailers equiping full braking and electrical systems
at home and abroad in accordance with ISO standard,optional ABS
system, braking, lighting is absolutely safe and reliable.
III.Quality guarantee
1. More than 30 years experiences in trailer and truck
industrial,exported to more than 30 countries in Africa,Southeast
Asia.
2. Two years free warranty terms for the I beam,three to six month
free warranty terms for the Axles,suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment,ensure to meet
your local road regulation.
IV.Specification
| Style | 27CBM 3-Axle U shape Tipper Trailer |
| Dimension(L*W*H) | 9060*2600*3450 (mm) |
| Inner Size(L*W*H) | 8110*2480*1490(mm) |
| Body materials | BS700MC high tensible 4mm |
| Payload(kgs) | 40000 |
| Volume(CBM) | 27CBM |
| Tare weight(kgs) | 9200 |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” |
| Tire and rim | 11R22.5 (13sets) |
| Axle | FUWA brand -13Ton |
| Suspension | Germany type with 12pcs of leaf spring |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand
T30/30 air chamber, 46L air tank |
| Air Chamber | MBA T30/30 |
| Electric system | One unit of 24V 7-pin ISO standard socket; with brake light, turn
light, reverse light, side light, reflector, fog light; one set of
6-pin standard cable |
| Hydraulic system | HYVA FE172-4-05390 |
